11Kw Rain Gutter Making Machine / Cold Roll Forming Machine High Speed

Brand Name : Dingbo
Model Number : MZ2017041002
Certification : ISO SGS CE
Place of Origin : Jiangsu, China
MOQ : 1 set
Price : USD 12500-16500/set
Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability : 25 sets/month
Delivery Time : 45 working days after receiving the deposit
Packaging Details : nude package in 40 GP container
Condition : New
Use : Roof
Voltage : 3.0kw,380v,50hz
Color : Customized
Warranty : 3 Years
Power(W) : 11kw
Cutting Type : hydraulic cutting
Material : Colored Steel
Contact Now

11Kw Rain Gutter Making Machine / Cold Roll Forming Machine High Speed

Introduction of rain gutter machine

The machine includes passive uncoiler unit,sheet guiding equipment,roll forming system,post cutting equipment,hydraulic station,PLC system and run out table and the bending machine

Technical parameters of rain gutter machine

1). Material Spec Galvanized sheet and color sheet ASTM A653

2). Thickness 0.50MM-0.60mm

3). Coil stress 235Mpa

4). Roll forming Speed 10-12 m/min

5). simple uncoiler Max. Capacity:3000kgs

6). Main motor power 4Kw

7). Hydraulic station power 3kw

8). Quantity of stands about 16 groups

9). Voltage as the client request

10). Roller Material:High grade No.45 forged steel, with chrome coated

11). Active Shaft Material:High grade No.45 carbon wrought steel

12). Electric Elements PLC control panel with touch screen transducer imported from

13). Mitsubishi of Japan.Other elements from famous suppliers in China

14). Cutter blade Cr12 mould steel with quenched treatment

Working flow of rain gutter machine

Decoiling the sheet---Sheet guiding----Roll forming ----Measure length----Cutting the panel----panels to the supporter

After sale services

  • Engineer will give free training lessons to labors in buyer’s factory.
  • The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD50 for engineer.
  • During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
  • We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

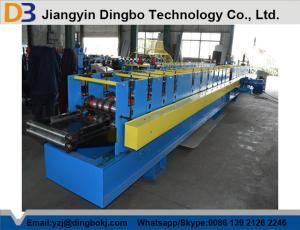

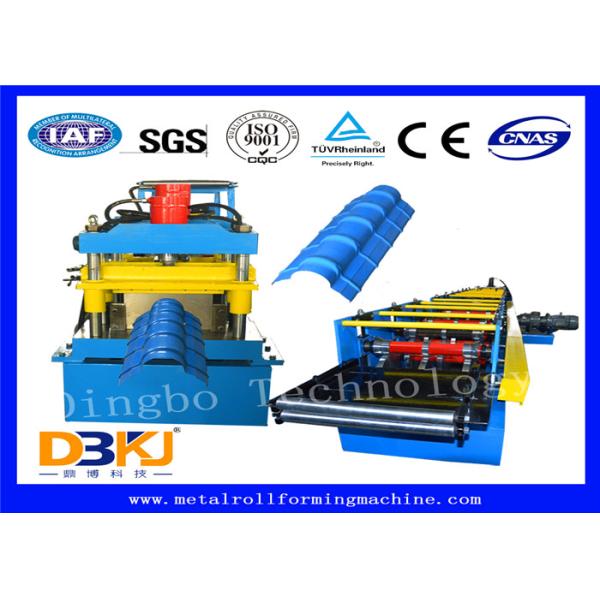

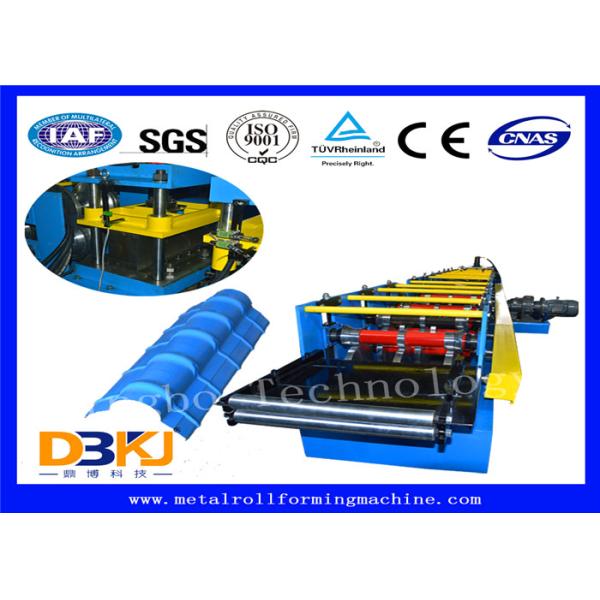

Pictures of rain gutter machine
