Plc Controlled Gutter Roll Forming Machine , Wall Panel Roll Forming Machine

Jiangyin Dingbo Technology CO., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Jiangyin Dingbo Technology CO., Ltd.
Province/State: Jiangsu
Country/Region: China
Tel: 00-86-13921262246
Contact Person:
Mr Andy Yang

Plc Controlled Gutter Roll Forming Machine , Wall Panel Roll Forming Machine

Brand Name : Dingbo
Model Number : MZ2017041004
Certification : ISO SGS CE
Place of Origin : Jiangsu, China
MOQ : 1 set
Price : USD 12500-16500/set
Payment Terms : L/C, T/T, MoneyGram, Western Union, D/A, D/P
Supply Ability : 20 sets/month
Delivery Time : 35 working says after receiving the deposit
Packaging Details : nude package in 20 GP container
Dimension(L*W : 6500*1300*1500
Material : color steel
Roller material : 45# Forged Steel
Weight : 5 ton
Warranty : 2 Years
After-sales Service Provided : Engineers available to service overseas
Usage : roof and wall
Tile Type : Steel
Voltage : 380v 50Hz
Forming speed : 8-15m/min
Contact Now

Plc Controlled Gutter Roll Forming Machine , Wall Panel Roll Forming Machine

Features of gutter forming machine

1. Passing CE, Guaranteed quality,
2. Adopt PLC control system, Easy to handle
3. Designing according to your requirement

Rain Gutter Cold Roll Forming Machine is composed of the decoiler, feed-leading table, main machine, the post cutting device, hydraulic system, PLC controler and the supporting table.

Technical parameters of gutter forming machine

1Suitable to processColor steel plate
2Width of the plate400mm
3Thickness of the plate0.3-0.8mm
4De-coilerManual one, can load 5 tons raw material
5Rollers for forming10 rows
6Diameter of the roller70mm
7Rolling materialCarbon Steel 45#
8Main motor power3kw
10Cutting methodHydraulic mould cutting
11Material of the cutting bladeCr12
12Hydraulic cutting power3kw
13Processing precisionWithin 1.00mm
14Control systemDelta PLC control
15Side panel of machine14mm
16Main structure of the machine300 H steel
17WeightAbout 2.8T

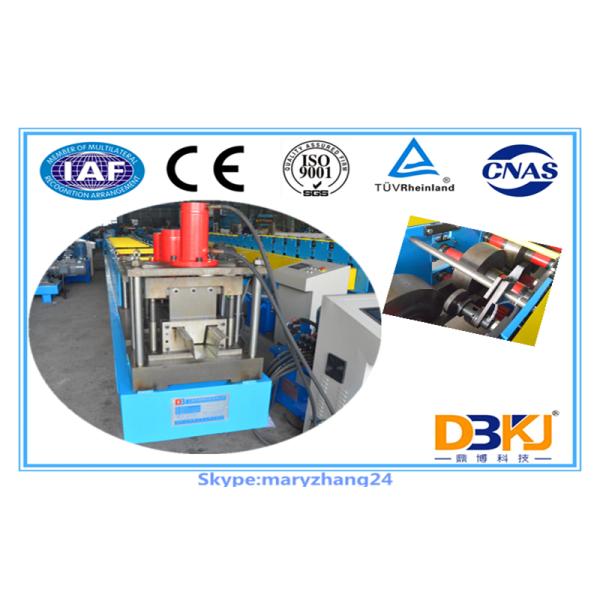

Pictures for reference


After sale services

  • Engineer will give free training lessons to labors in buyer’s factory.
  • The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD50 for engineer.
  • During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
  • We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
