0.2-2mm Thick Slitting Line Machine For Cutting / Steel Cutter Machine

Product Categories

Jiangyin Dingbo Technology CO., Ltd.

Contact Now

Brand Name : DB

Model Number : 0.2~2.0mm*1250mm

Certification : CE.SGS.ISO9001

Place of Origin : Jiangsu, China (Mainland)

MOQ : 1 Set

Price : US $30,000 - 50,000 / Set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20 Set/Sets per Month

Delivery Time : 30-50 days after receiving the deposit

Packaging Details : nude package in 40 GP container

After-sales Service Provided : Engineers available to service machinery overseas

Contact Now

Full Automatic Steel Slitting Machine for Cutting/Steel Cutter Machine

Working flow:

Motor decoiler—transmission---slitting----correcting and damping—Auto hydraulic recoiler

Detailed information

2. Coil transmission
Transport roller	45# forge steel, quenched and chrome coated 0.05mm
Width of roller	1500mm
Motor power	3KW

3. slitting part
Disc slitting blade
Number of disc blade	11groups(as customer require)
Material of disc blade	Cr12mov
Material of main shaft	steel and Rubber covered
Slitting speed	20-30m/min
Motor power	11KW
Scrape recoiler
Rotary according to slitting device

4. correcting and damping
Correcting rollers	three rollers, 45#forge steel and chrome coated 0.05mm

5. Recoil system with correcting device
Expanding	hydraulic
Capacity	5 Tons
Hydraulic power	5.5KW
Motor power	7.5KW
Inner diameter	450-550mm
Recoiler width	50-1250mm(adjustable)
Automatic recoil with correcting device

6.Electrical control cabinet
Electrical system:	PLC Panasonic 380V, 50HZ, 3 phase(also depend on customer demand)
Transducer	Quartet Brand
Weight	10.5 tons
Production area	18.5x3.5x2.1meters

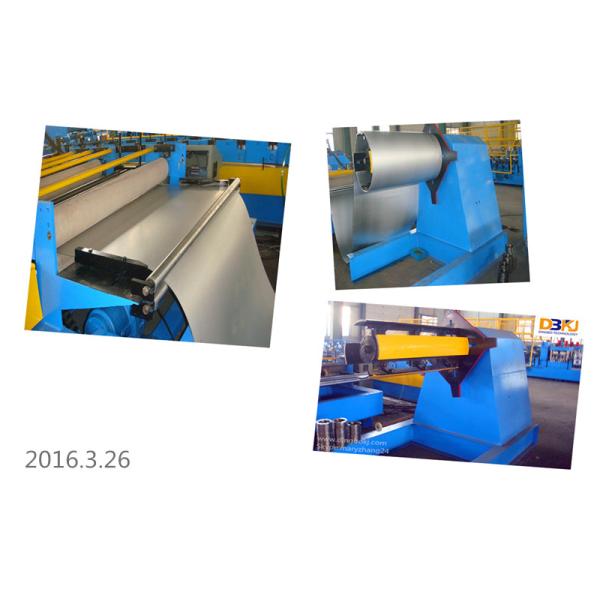

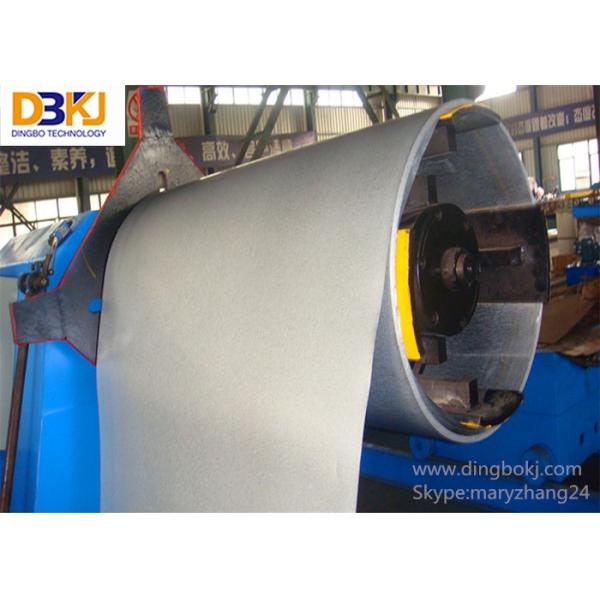

Pictures for Reference

0.2-2mm Thick Slitting Line Machine For Cutting / Steel Cutter Machine

Certificates

Company Scene

1, Pre-sale service : Confirm details with customer, to make the most suitable Offer to them according to their real needs in production

2, Mid-sale service: Track and report production progress to Customers

3, After-sale service: 1 Year free quality garantee, after 1 year we offer lifetime garantee but just charge basic cost for comsumable parts
