Automatic Rolling Shear Slitting Line Machine Zinc Plating Roll Sheet
Brief descriptions
The DBSL-3x1300 steel coil slitting line is used to roll the metal strip, leveling, According to the required length of lateral slitting, and neatly stacked. Unit adopts dc speed control system, pneumatic, hydraulic control system and PLC control system. The seep of slitting, single machine adjustment and full automatic operation control all concentrated in the console, stable performance, safe and convenient operation.
Working flow
From right to left are: Entry coil car→Hydraulic decoiler →Hydraulic press and pinch device→Hydraulic cutter→Looper 1→Side guide device→ Slitter→Scrap winder→Looper 2→Tension stand →Recoielr→Exit coil car
Main technical parameter
| Material | Color-coated/Galvanized,/Alu-zinc steel sheet |
| Material yield stress | 235-345Mpa |
| Coil thickness | 0.40-3.00mm |
| Coil width | 400-1300mm |
| Working speed | 0-120m/min |
| Power requirement | Main motor power 7Kw |
| Decoiler | 5 tons hydraulic decoiler with coil dia. 508mm |
| Slitting blades | max.9 set blades |
| Max.slitting strips | 10 strips |
Machine components
| No | Name | Quantity |
| 1 | Entry coil car | 1 set |
| 2 | Hydraulic decoiler | 1 set |
| 3 | Hydraulic press and pinch device | 1 set |
| 4 | Hydraulic cutter | 1 set |
| 5 | Looper 1 | 1 set |
| 6 | Side guide device | 1 set |
| 7 | Slitter | 1 set |
| 8 | Scrap winder | 1 set |
| 9 | Looper 2 | 1 set |
| 10 | Tension stand | 1 set |
| 11 | Recoiler | 1 set |
| 12 | Exit coil car | 1 set |
| 13 | Hydraulic system | 1 set |
| 14 | Electrical system | 1 set
|
Descriptions:
Components of the 1300 semiautomatic slitting line: coil car, hydraulic decoiler, slitter, hydraulic tension station, hydraulic recoiler
Main parameters:
Size(mm):20000*6000*2000
Material: common carbon steel sheet, zinc-plating roll sheet, stainless steel sheet
Material quality: steel coil
Thickness(mm): 0.2-2.0
Width(mm): 1250
Coil I.D(mm): f508
Coil O.D(mm): f1500
Coil weight: 11t(max)
Slitting product:
Coil I.D: f508mm
Slitting tolerance thickness:1.0mm?.03mm(max)
Slitting burr thickness: 1.0mm=0.03mm(max)
Minimal width :12mm
Slitting number: 12(coil thickness 0.5mm)
16(coil thickness1.5mm)
Electric power: 380V/50HZ/3PH
Capacity: 100KW
Speed: 0-30m/min
Slitting type: rolling shear
Product Tags:
|
|

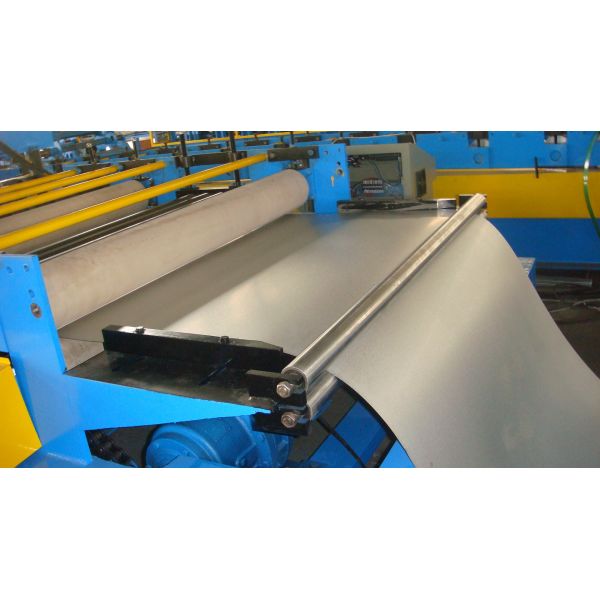

Automatic Rolling Shear Steel Slitting Line Zinc Plating Roll Sheet Images
|
